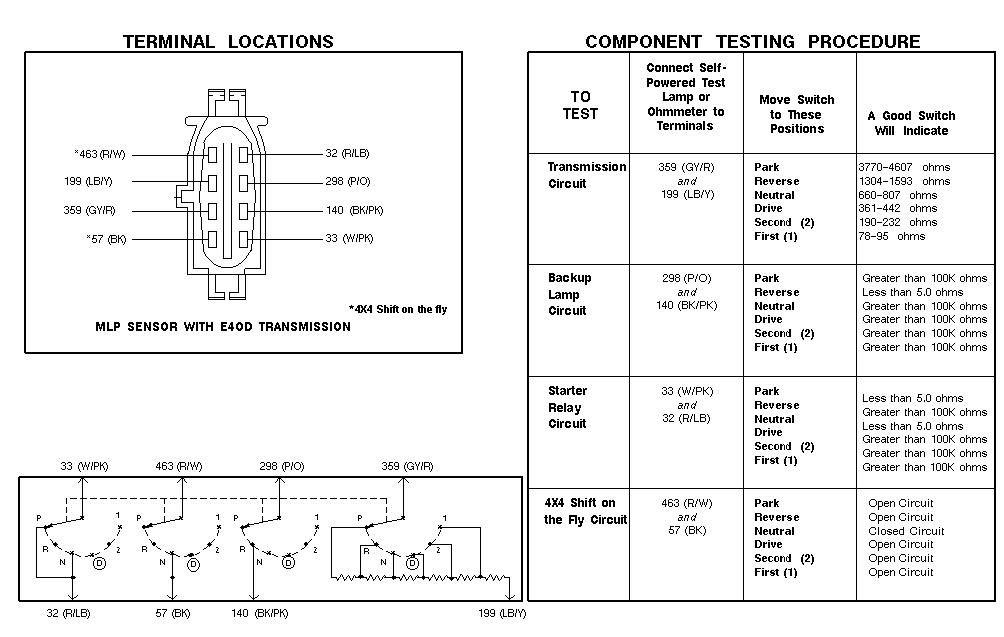

Ford E40d Neutral Safety Switch Wiring Diagram

How i fixed all of fords stupid transmission wiring problems. F150 overdrive switch not working. 1992 to 1997 ford f 150 neutral safety switch replacement duration.

Ford Neutral Safety Switch Wiring Faint Fuse8 Klictravel Nl

Mlps Neutral Safety Switch E40d Ford Truck Enthusiasts Forums

E4od Transmission Problem Page 4 Ford Truck Enthusiasts Forums

1993 E40d Temporarily Bypassing Lockout Switch Ford Truck

Ze 8976 4r100 Transmission Solenoid Diagram Schematic Wiring

Faulty Neutral Safety Switch Page 2 Ford Truck Enthusiasts Forums

Vehicle is 1999 ford f250 4x4 with about 79 000 miles.

Ford e40d neutral safety switch wiring diagram. Ford e4od transmission range sensor neutral safety switch oem motorcraft sw5978 69 92. 94 ford f 350 2wd eng. It shows the components of the circuit as simplified forms and also the power and also signal links between the tools. See the optional features section for details.

The manual says not to use a fluid for dual use such mercon and mercon. Disconnect the negative battery cable. The neutral safety switch is the manual lever position. Additionally connect the neutral safety switch and the backup lamp switch see page 16.

Need help with wiring on neutral safety switch ford truck. Raise and safely support the vehicle on jackstands. A wiring diagram color code neutral 2wd eng trans i need a wiring diagram color code of the plug that goes into the neutral safelty switch of the transmission. Neutral safety back up light switch this is a combination switch which controls both neutral safety and back up lamp circuits.

E4od transmission range sensor neutral safety switch is a direct fit for the following. C6 transmission c6 neutral start switch. 1989 1996 ford f 150 1989 1997 ford f 250 1989 1997 ford f 350 1987 1996 ford bronco 1989 1996 ford e 150 e 250 e 350 econoline vans with e4od transmissionsgenuine ford part number. Looking for the neutral safety switch.

Im rewiring my truck and when it comes to the neutral safety switch the two wires connect to that and a loop. Obs ford 7 3 e4od shifting fix part 2 try this before opening. An output shaft speed sensor a vss or an electronic speedo can be used for speed input. For a e40d wiring diagrams wiring diagram 94 ford e40d trans e25 wiring diagram 94 ford e40d trans e25 1996 f250 e4od wiring harness.

A wiring diagram is a streamlined conventional pictorial depiction of an electric circuit. Variety of ford f150 wiring diagram. Need correct wiring diagram for neutral safety switch on an e40d trans. E40d wiring connector replacement and drive line rudedogii.

Optional features connect any extra features you wish to use.
